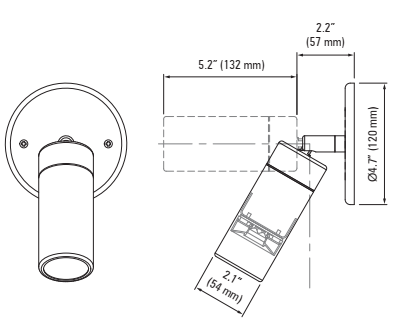

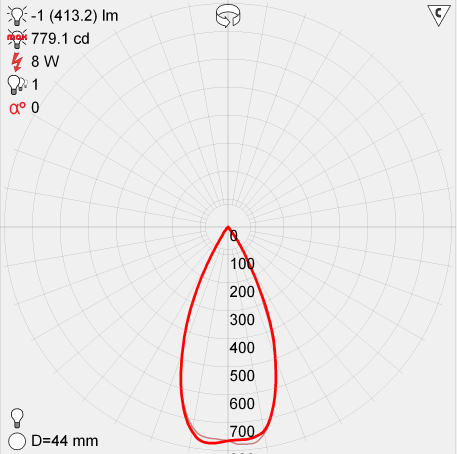

LS321LED - 6H6 WD

The LS321LED Pagoda is a compact, adjustable, direct or indirect accent used for grazing walls or other accent illumination tasks. The luminaire is constructed from either copper or powder-coated aluminium, providing a variety of aesthetic options. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

Specification

Power
6W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
512LM
Finishing
BLACK
IP Rating
IP65
Color Rendering
CRI >80
Driver
ON/OFF DRIVER

See more

ELR
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed round pinhole downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre

SPARK
WALLWASHER
INDOOR LIGHTING

Recessed linear wallwasher, luminaire body made of aluminium housing with white powder coated trim finish. Black finish available upon request.

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. DALI-2 converter; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
SPARK
SURFACE MAGNETIC TRACK SPOT
INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.
