LUMASCAPE

WALL LIGHT

OUTDOOR LIGHTING

LS722LED - 6H6 NR

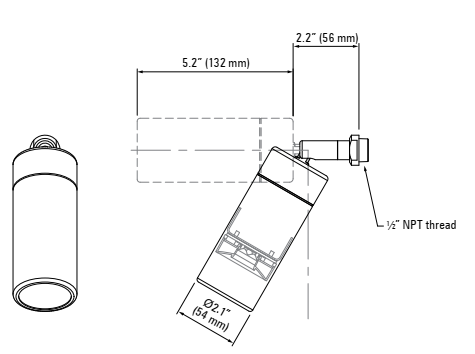

The LS722LED Magnolia is a compact, adjustable, direct or indirect accent used for grazing walls or other accent illumination tasks. Installation is via ½” NPT, making it ideal for halogen retrofit and new construction alike. The luminaire is constructed from either copper or powder coated aluminium, providing a variety of aesthetic options. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

512LM

Finishing

BLACK

IP Rating

IP65

Color Rendering

CRI >80

Driver

ON/OFF DRIVER

XAL

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Rectangular surface mounted multi-downlight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface jet black powder coated; equipped with two wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 67°; high quality reflector with micro-faceted, aluminum-vaporised surface; Reflector chrome;

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Ginko 4.0 Outdoor surface mounted projector light (ceiling, wall, ground, spike), housing made of,body in anticorodal aluminium, AISI 316L stainless steel bracket made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of brass, produced entirely on a CNC lathe. Bracket made of brass. Optics available 12°, 26°, 34°, sharp 38°, 55°, adjustable 13°x65°, adjustable 24°x69°. IP66, IK08.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.048 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 99847 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
