LINEALIGHT

Single emission ceiling lights for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 5 powerled LEDs. Luminaire body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of UV resistant polycarbonate with a sandblasting treatment; the diffuser is made of extra clear glass - tempered with a sandblasting treatment. The ingress protection degree is IP67,IK08.

Recessed luminaire with microprismatic cover (600*600mm). lay in luminaire for ceilings with exposed grids, the luminaire is also suitable for surface mount installation with an accessory. Luminaire frame made of aluminium and rear body made of sheet steel. Microprismatic cover of PMMA with narrow wide light distribution. Glare evaluation <UGR19, suitable for workstations with computer screens, offices, corridors, foyers, conference room, retail areas and waiting zones.

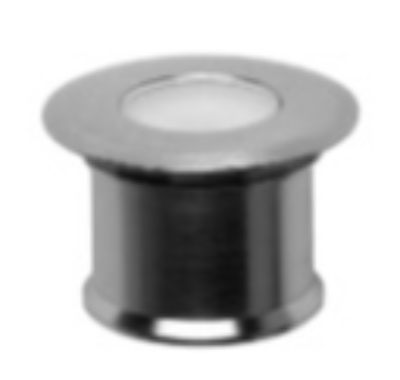

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; System Power 9W; measurements Ø78mm x 97mm; ceiling cutout of Ø68mm with a narrow mounting trim; ceiling thickness 5-20mm; luminaire’s weight is approximately 210g; rotation 350° and pivot Max. 30°; CCT 2700K with a System luminous flux of 620lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN
