MEYER

INGROUND UPLIGHT

OUTDOOR LIGHTING

8 670 016 049

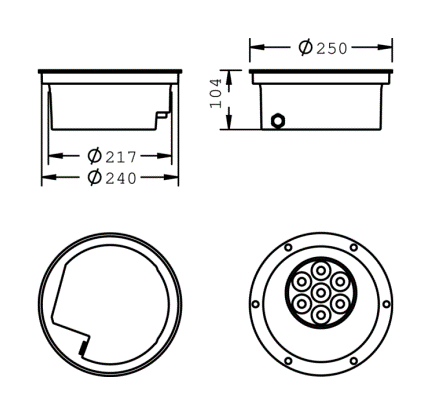

The Uplight S product range are luminaires with extremely shallow recess depth. This product feature ensures that the luminaries do not collide with existing infrastructure in the ground, such as electrical or water conduit. Adjustable collimator optics with various different light distributions make these products versatile tools for architectural and landscape lighting. Optimal glare control can be achieved by the use of honeycomb louvres as an accessory.

Specification

Power

25W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1921LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI >80

Driver

ON/OFF DRIVER

SPARK

SURFACE TRACKLIGHT

INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

RCL

REMOTE CONTROL DOWNLIGHT

INDOOR LIGHTING

NOVA is RCL by Luminii’s most compact recessed luminaire to date. It masters the art of pin spotting and accent lighting while combining excellent beam quality with all the benefits of RCL technology. NOVA is available with three fixed CCT light engines, delivering up to 1,368 lumens from a wide selection of fixed beam options as well as Zoom powered by Lensvector. 360º pan with 35º tilt Motorised Movement. Accessory honeycomb & Microlens.

DIMENSION : Ø115*H110MM

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is include and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98673(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

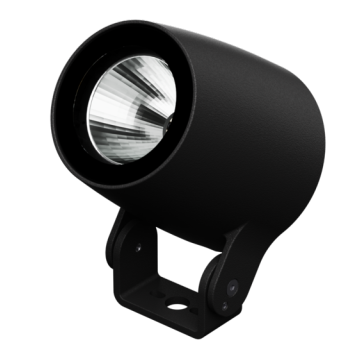

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish,integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 11° / 54°, luminous flux: 4225 lm, wattage: 48 W, delivered lumens 88 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 190 × 160 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
