ELR

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

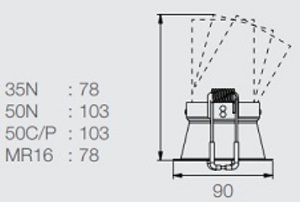

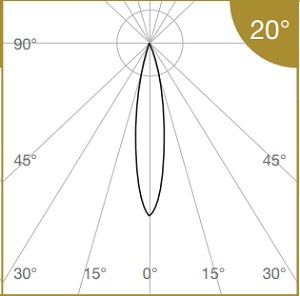

ALTI 3_50N_20D

Recessed round pinhole downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Lumen from 310lm to 1600lm depending on LED module. 83mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional 40 linear lens, colour, light effect filters and honeycomb and anti-glare louvre.

Specification

Power

10W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

827LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 85

Driver

ON/OFF DRIVER

FORMALIGHTING

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Recessed/surface luminaire with light housing in aluminium extrusion inclusive of with toughened safety glass, weatherproof durable silicone gasket and external screws made of stainless steel. Ring and back plug cover in cast aluminium. Base and bracket in cast aluminium. Front cover designed to avoid accumulation of dust and water. Ceiling installation via clamping wings for ceiling thickness 1 to max.30mm. Surface version tiltable vertically 0-140° and rotable horizontally 350°, inclusive of mechanical locking system to ensure aiming stability.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.048 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 99847 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

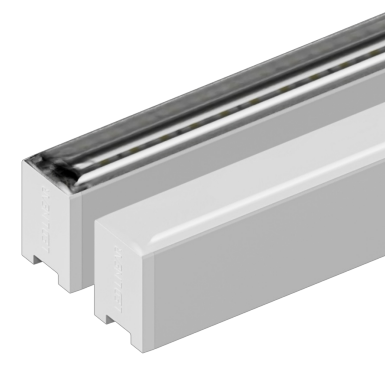

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 3 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.450 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.250 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99972 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
