ELR

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

ALTI 3_50C_35D

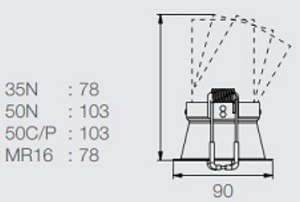

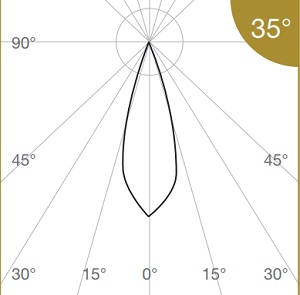

Recessed round pinhole downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Lumen from 310lm to 1600lm depending on LED module. 83mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional 40 linear lens, colour, light effect filters and honeycomb and anti-glare louvre.

Specification

Power

12.8W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

1056LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 85

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LUCE & LIGHT

SPIKE LIGHT

OUTDOOR LIGHTING

Outdoor Surface mount made of ANTICORODAL EN AW 6082 low-copper-content aluminum alloy for excellent resistance to corrosion. Screen in serigraphed, tempered extra-clear glass. Accessories come with honeycomb louvre. Pole available in 500mm height . IP66, IK08, IP66, IK07.

LIGHTFORMS

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

Micro-HB is a clean and compact luminaire that provides both direct and indirect illumination. The slim channel provides for a minimalist-looking aesthetic. Driver is REMOTE.

DALITEK

CONTROL SYSTEM

6 channels 10A/CH switch output, 6 channels 0-10V control signal. Switch relays and 0-10V channels can be controlled separately. 220V ± 10% 50Hz Single phase 0.1A. Phase-independent. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure. DIN rail installation
