ELR

RECESSED DOWNLIGHT
OUTDOOR LIGHTING

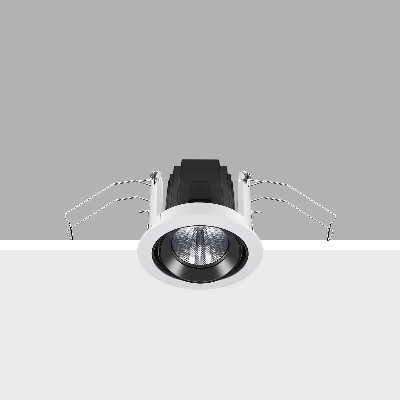

VASARI 4_35N_20D
Recessed fixed downlight compatible with 35 and 50 series LED modules. Colour temperature options 2700K,3000K, 4000K, 5000K, tuneWHITE, WarmDim. Luminous flux 335lm to 1500lm depending on LED module. 76mm cutout, ATePS Automated Thermal Protection System,ComfyEYE reduced flicker percentage, Interchangeable LED module system.

Specification

Power
7.5W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
651LM
Finishing
WHITE
IP Rating
IP54
Color Rendering
CRI 85
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
Single emission downlights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP67,IK10.
CUSTOMIZED
WALL LIGHT
INDOOR LIGHTING

Dimension : W150 x L1800mm.

SIMES
INGROUND UPLIGHT
OUTDOOR LIGHTING
Die cast EN AB-44300 aluminium (low copper content) housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Mechanical resistance IK 10. Maximum load capacity. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
LINEALIGHT
LED STRIP
OUTDOOR LIGHTING

Single emission submerged or led strip for outdoor application. The warm white LED light source with a diffused light distribution is composed of 112 topled LEDs with CCT of 3000 K and a CRI >90; the source luminous flux is 1096 lm, with a 109.6 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP68
