TRAXON

Square miniaturised recessed luminaire with 4 optical elements for LED lamps - fixed optics. Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient flow and a high level of visual comfort. Main body with die-cast aluminium radiant surface, version with perimeter surface frame. Metallised, thermoplastic, high definition Opti Beam reflectors, integrated in a set-back position in the anti-glare screen

Die-cast aluminium housing and frame. Pre-treated before powder coating ensuring high corrosion resistance. Single cable entry, through wiring upon request. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket. High-efficiency glass lens. Integral control gear. Recessing box in high-density polyethylene is included. To ensure efficient drainage, gravel must be used to a depth of 450 mm and width of 300 mm beneath the housing and should also be placed around luminaire. Suitable for drive-over with a maximum load of 4,000 kg for MK-60249, MK-60259, 2,000 kg for MK-60269, 1,000 kg for MK-60729. Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 10 km/h. Load is transferred by the housing to the foundation

The Traxon Linear Go Maxi DC is a DC line powered exterior luminaire used to distinguish facades, walls, and architectural landmarks with a powerful, even color wash effect. Linear Go’s high-value design features efficient electrical and optical systems, making it ideal for budget-conscious projects. This product is intended for use in high-quality colored light applications. Dimensions (With Glare Shield) (L x W x H, Mounting Bracket included) 1200mm x 61mm x 123mm.

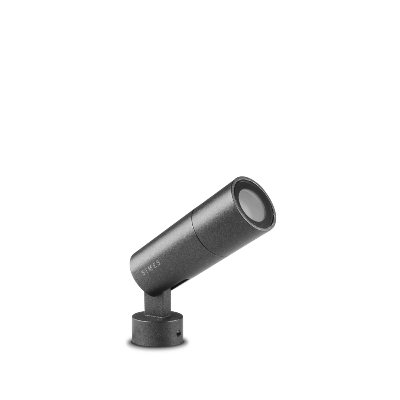

Spotlight designed to use LED lamps and a Spot optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer).
