LINEALIGHT

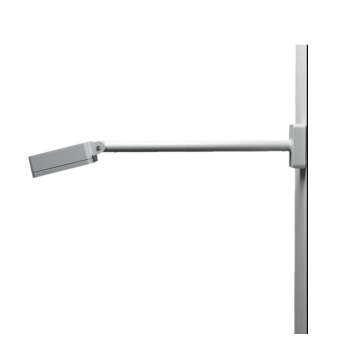

IP66. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. 24VDC low voltage versions, ON-OFF Class III. DALI (only 4W available) Class I. Knuckle permits 340° rotation, forward tilt 73° and backward tilt 90°. Remote 24VDC power supply to be ordered separately.Optical accessories are factory-installed. To be specified at time of ordering.

Square recessed ceiling downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; LED 2*11W; measurement 142mm x 78mm; ceiling cutout of 133mm x 68mm with a narrow mounting trim; CCT 3000K with an LED Output of 2*1200lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; narrow beam characteristic with 24° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20); light source replaceable by a qualified electrician; driver replaceable by a qualified electrician.

The luminaire ceiling- recessed downlight that highlight the desired subject or place and provide optimum illumination by being nondescript. The simplicity of its form provides smooth integration in architectural features

Square surface mounted multi-downlight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface traffic white powder coated; equipped with a medium round light element; symmetrical light distribution with precise radiation characteristic, beam angle 33°
