NEKO

RECESSED DOWNLIGHT
INDOOR LIGHTING
M3-9302511F-TSA3-WWW

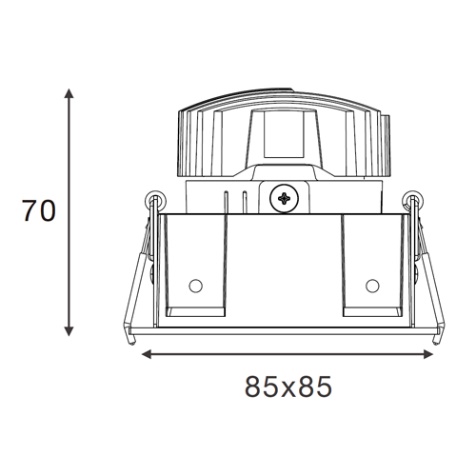

Square spotlight for recessed installation made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; LED 11W; measurement 85mm x 85mm; ceiling cutout of 75mm x 75mm with a narrow mounting trim; luminaire's weight is approximately 260g; CCT 3000K with an LED Output of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection IP20 (LED Module IP54)

Specification

Power
13W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
670LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

PHOS
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
The Zep1 Fixed is a recessed, fixed downlight with a Ø95mm bezel and features a deep-set optic behind a prismatic glass lens. Reduced glare design with prismatic glass lens and deep optic.
LINEALIGHT
FOOT LIGHT
OUTDOOR LIGHTING

Asymmetric wallwasher light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80. The device features protection class III and can be wall lights-mounted, with a 28 mm diameter hole (in plasterboard) with an outer casing, code 84915(for concrete or masonry). The ingress protection degree is IP66; the total weight is of 0.062 kg. The power supply driver is not provided and is to be ordered separately.

LUCE & LIGHT
SPOTLIGHT
OUTDOOR LIGHTING

Projector for outdoor applications; surface mounted (ceiling, wall, ground, spike, strap); Power consumption: 7W; Power supply: 24Vdc; Lumen output at source: 608 lm (3000K, 7W, CRI >90); Delivered lumen output: 374 lm (3000K, 34°, 7W, CRI >90); 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K; Optics: 34°

ERCO
RECESSED DOWNLIGHT
INDOOR LIGHTING

Luminaire: cast aluminium, black powder-coated, designed as heat sink, with connection cable L 1m. Gimbal suspension: polymer, black. Luminaire can be tilted from 0° to 40°, and can be tilted through 60° in the longitudinal direction of the channel.
