NEKO

RECESSED DOWNLIGHT

INDOOR LIGHTING

M3-9302511F-TSA3D-WWW

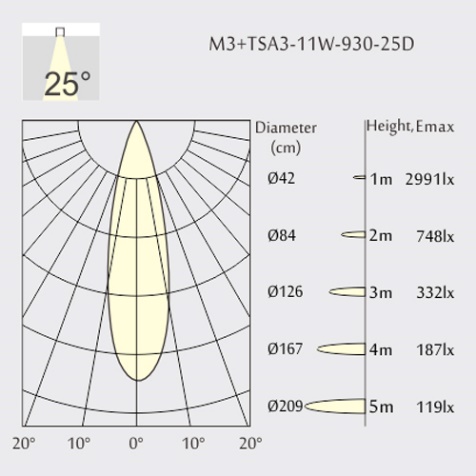

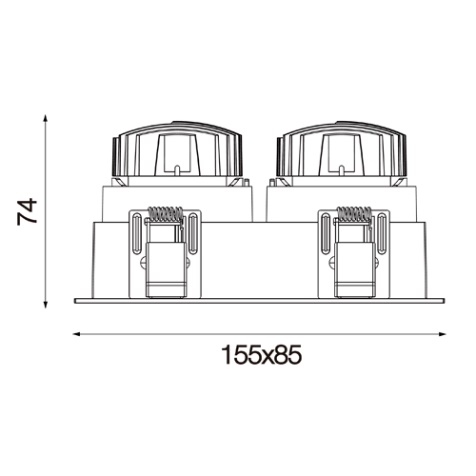

Square recessed double head spotlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 2*13W; measurement 155mm x 85mm; ceiling cutout of 145mm x 75mm with a narrow mounting trim; rotation 355° and pivot max. 18°; CCT 3000K with a System Luminous Flux of 2*670lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20 (LED Module IP54); impact resistance of the luminaire is in the class IK06; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

Specification

Power

26W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1340LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 699 lm, with a 116.5 lm/W nominal luminous efficacy. The device body is made of aluminium and features a white ral 9010 finish, processed by means of coating. The ingress protection degree is IP45.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Mini recessed adjustable downlight Ø52mm, cut-out Ø45mm. Various beam angles from 8, 15, 24, 36, 45 and 60°. Color finishing Black available upon request. IP20

MEYER

UP/DOWN WALL LIGHT

OUTDOOR LIGHTING

Housing made corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, UV stabilised, impact‑resistant polycarbonate cover , silicon gasket, with 4 stainless steel screws, mounting brackets: 2 drilled holes Ø 6,5 mm, spacing 282 mm, tilt range: 120°, cable gland: PG11, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 15° / 103°, luminous flux: 1175 lm, wattage: 15 W, delivered lumens 78 lm/W, protection typ IP65, protection class I, impact resistance IK10, windage area 0,04 m², dimensions (L×H×W): 328 × 47 × 135 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

SPARK

ZOOMABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable Zoomable downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish available upon request.
