NEKO

RECESSED DOWNLIGHT

INDOOR LIGHTING

SKYJACK A68 SJA1-9303809P-WW

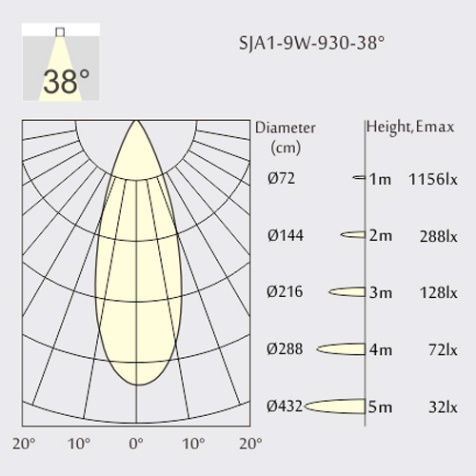

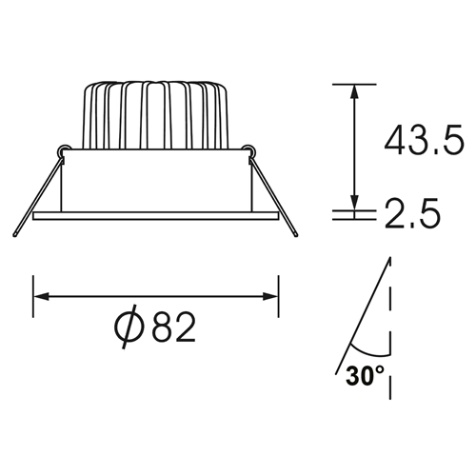

Round recessed ceiling downlight made of die-cast aluminium with white powder-coating finish (RAL 9016); Phase Dim Driver; System Power 11W; measurement Ø82mm; ceiling cutout of Ø68mm with a narrow mounting trim; luminaire's height is 46mm; pivot max. 30°; CCT 3000K with a System Luminous Flux of 750lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warranty; degree of housing protection IP44 on the visible part of the product one installed; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

Specification

Power

11W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

750LM

Finishing

WHITE

IP Rating

IP44

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.

LUCI

LINEAR LIGHT

OUTDOOR LIGHTING

LINEALIGHT

SPOTLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 98; the source luminous flux is 2263 lm, with a 141.4 lm/W nominal luminous efficacy.
