NEKO

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 24°, luminous flux: 419 lm, wattage: 6 W, delivered lumens 70 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,009 m², dimensions: Ø 100 mm, width 80 mm, weight 1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

I-BRICK is a range of wall recessed luminaires with LED light sources plus a good glare control allows it to be installed in most places where a comfortable illumination is needed. The low energy consumption LED module saves operating cost while providing acceptable lighting levels. I-BRICK is available in five different styles in two size. The shallow housing can be installed in either wall or step where recess depth is limited. The high quality LED drivers is integrated inside the luminaire for ease of installation. I-BRICK is commonly used to illuminate stairways, pathways and walls.

Housing: cast aluminium, with connec- tion cable L 850mm. 0°-40° tilt, 360° rotation. Lockable angles of tilt and rotation.

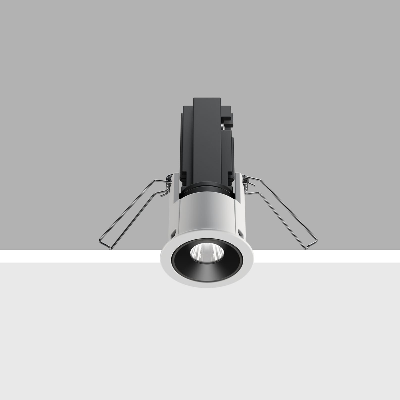

The recessed spot INVADER SEMI-ON is part of the product family INVADER. With 2 powder coated options 625 colour combinations can be achieved. Stated photometric values correspond to operation by 250 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 220-0573) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. A PROLICHT lense pack is optionally available.
