IGUZZINI

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

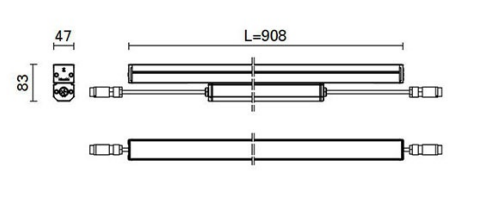

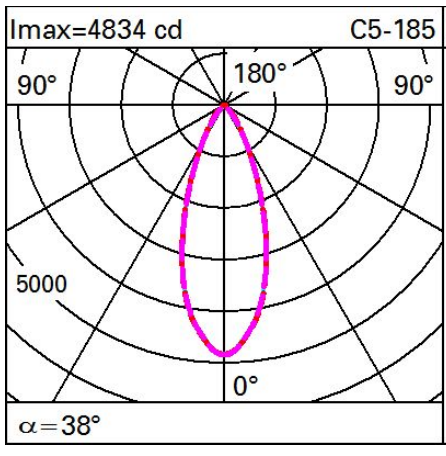

LINEALUCE_EJ07

Surface direct light luminaire dimmable with searching and addressing function. Luminaire body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals. The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN 60598-1 standards and particular requirements. IP66, IK06

Specification

Power

39.2W/M

Color Temperature

2700K

Light Source Type

LED

Lumen Output

2262LM/M

Finishing

STAINLESS STEEL

IP Rating

IP66

Color Rendering

CRI80

Driver

DALI Driver

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Protection class IP68 – up to 3m water depth. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti 1.4571. Mounting foot adjustable through 180° or 90°. Operating mode: constant current. POW-LED cold white, warm white, neutral white, CC POW-LED RGB. Operating mode: constant voltage. POW-LED cold white, warm white, neutral white, CV. Multichip POW-LED RGB-W. POW-LED-Platine temperature control (NTC). Cable gland PG16/21, marine grade 316Ti stainless steel. Temperature-resistant silicon seal. Toughened safety glass. Supplied with 3 m cable

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.021 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 15 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

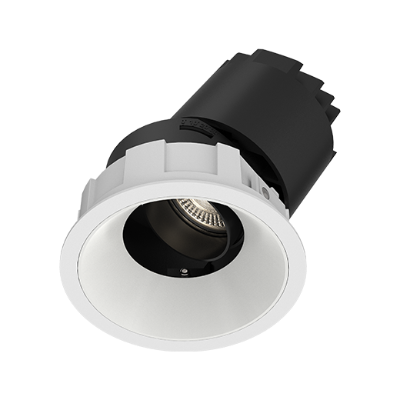

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.
