CASTOT 3 MINI RD TILT-50N 20D

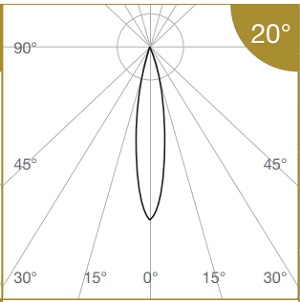

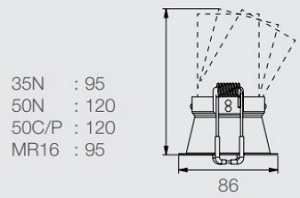

Recessed round downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre.

Specification

Power
7.5W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
609LM
Finishing
MATT WHITE
IP Rating
IP40
Color Rendering
CRI85
Driver
DALI Driver

See more

CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.35 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.3 m length. The device features protection class III and can be ceiling-mounted, with a 180 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round recessed ceiling downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20)
WEVER & DUCRE
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Round ceiling recessed downlight made from die-cast aluminium adjustable surface. Black Matt; powder coated, matt texture RAL 9005; installation without tools using blade springs. Suitable for ceiling thickness of min. 6 mm, recessed depth 90 mm; with COB (Chip on Board) technology for maximum efficiency. Bining initial MacAdam ≤ 2 SDCM; CRI ≥ 90; beam angle 34°; 355° rotatable and 35° tiltable; degree of protection IP20.
