ULTIMA was designed with miniaturisation, integration and sustainability in mind. It is based on two master technologies: CSP LEDs and NanoRay optics. The result is an extremely small luminaire that offers the same optical options as much larger systems without compromising on light quality, as illustrated by an UGR <13 and a high colour consistency over angle.

The new Canali edge is a revolutionary edge-less lighting system featuring easy and clean installation, eliminating wired connections and gearboxes in the cove. Canali Edge profile features easy-to-clip on adjustable spotlights, together with a dedicated channel for linear cove lights fixed by magnets, all in extruded aluminum. The Integrated 3 phase track system with DALI bus enables full DALI control on both linear and track spots. Small and powerful in-track integrated drivers make it very easy to move and reposition the spotlights and the linear lights.

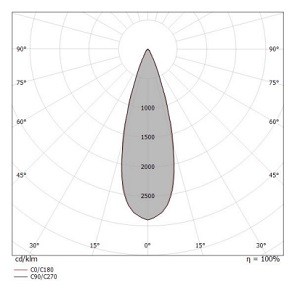

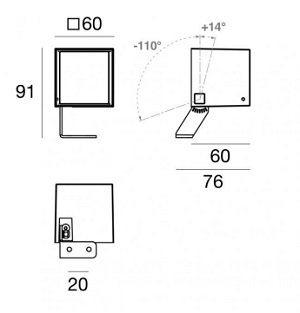

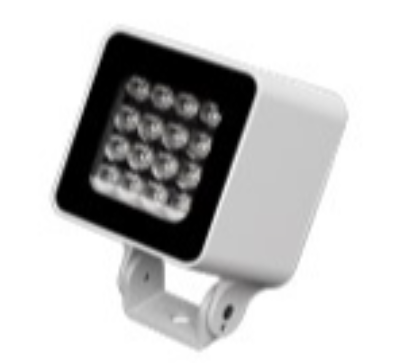

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, 2 drilled holes Ø 7 mm, spacing 30 ‑ 35 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 44°, luminous flux: 1460 lm, wattage: 23 W, delivered lumens 63 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,013 m², dimensions (L×H×W): 126 × 97 × 126 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

I-BRICK is a range of wall recessed luminaires with LED light sources plus a good glare control allows it to be installed in most places where a comfortable illumination is needed. The low energy consumption LED module saves operating cost while providing acceptable lighting levels. I-BRICK is available in five different styles in two size. The shallow housing can be installed in either wall or step where recess depth is limited. The high quality LED drivers is integrated inside the luminaire for ease of installation. I-BRICK is commonly used to illuminate stairways, pathways and walls.
