FORMALIGHTING

SPOTLIGHT

OUTDOOR LIGHTING

3498BB12-803022DA10

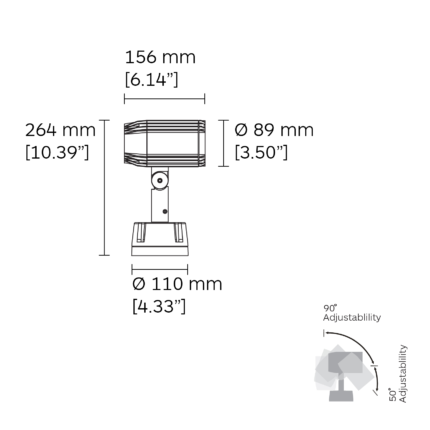

Recessed/surface luminaire with light housing in aluminium extrusion inclusive of with toughened safety glass, weatherproof durable silicone gasket and external screws made of stainless steel. Ring and back plug cover in cast aluminium. Base and bracket in cast aluminium. Front cover designed to avoid accumulation of dust and water. Ceiling installation via clamping wings for ceiling thickness 1 to max.30mm. Surface version tiltable vertically 0-140° and rotable horizontally 350°, inclusive of mechanical locking system to ensure aiming stability.

Specification

Power

19W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1459LM

Finishing

BLACK

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

ARTEMIDE

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

The Alphabet of Light system is a language of light that continues to grow with new curved elements, developing with increasing freedom in spaces. It is a fundamental principle that generates an open system through a few basic modules. Thanks to precise geometric proportions, these modules can be combined to construct infinite structures of light, whether essential or more complex, linear or curvilinear, all environmentally certifiable with EPD (Environmental Product Declaration). The concept by BIG combines with Artemide's optoelectronic expertise to define an innovative construction principle and provide a continuous and comfortable light. It is a minimal presence that encompasses not only highly innovative optoelectronic and patented mechanical components but also management innovations. The system is controllable through the Artemide App to create freedom not only in designing geometries but also in defining dynamic performances, programmable or modifiable in real time.

LUCE & LIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket powder coated aluminum: 2 drilled holes Ø 8.5 mm, spacing 50‑70 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 85, 2 SCDM, service life L90/B10 > 50.000 h, luminous flux: 2550 lm, wattage: 26 W, delivered lumens 98 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 184 × 70 × 184 mm, weight 2.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

BEGA

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

PRIMA Recessed ceiling downlight with connecting cable for installation into concrete ceilings or suspended ceilings both indoors and out. With symmetrical wide beam light distribution..Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology. Colour graphite or white Clear safety glass. Reflector surface made of pure aluminium. Luminaire housing with 2 fixing claws and guide screws
