Square spotlight for recessed installation made of die-cast aluminium with white powder-coating finish (RAL 9016) and matt reflector; 0-10V Dim Driver; LED 13W; measurement 85mm x 85mm; ceiling cutout of 75mm x 75mm with a narrow mounting trim; luminaire’s weight is approximately 340g; CCT 3000K with an LED Output of 1400lm; high color rendering at an index of CRI90

Floodlight designed to use Warm White LED lamps with a Super Spot optic. Can be installed at ground level, on walls (using screw anchors) and on pole mounting systems. The luminaire consists of an optical assembly/component-holding box and hidden fixing bracket. The optical assembly and front frame are made of die-cast aluminium alloy painted with a smooth finish (grey RAL 9007) or a textured finish (white RAL 9016).

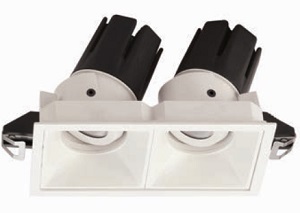

Recessed adjustable type downlight, aluminium housing, different types of beam angle.

Luminaire made of aluminium alloy, aluminium and stainless steel Opal glass with screw neck. Silicone gasket. Mounting plate with 2 fixing holes ø 5.2 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. Safety class I. Protection class IP 44. Protected against granular foreign bodies > 1 mm and splash water. Impact strength IK04, Protection against mechanical impacts < 0.5 joule, r – Safety mark, c – Conformity mark.
