EWO

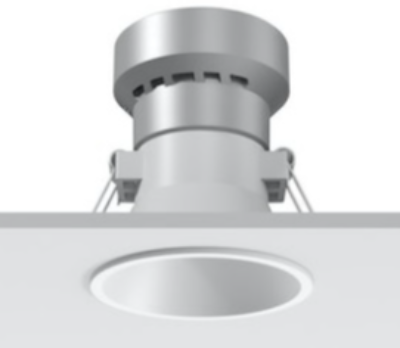

Recessed adjustable square downlight with snoot and luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.

The Grevillea is an excellent option for delivering light on the ground plane, or for feature accent lighting without obstruction from low level plantings. Aim and tilt adjustability, a choice of finishes and long service life are all part of the package. The Grevillea also features d5 driver technology as a standard inclusion, providing a high level of control: When high output is required, it can be deployed in its full output, 6 W configuration; If a lower level of light is required, it can be set as low as 0.6 W, (either by the factory or in the field).

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre hole Ø 22 mm, tilt range: 105°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), 80, service life L70/B > 50.000 h, Beam angle (fwhm): 14°, luminous flux: 1544 lm, wattage: 55 W, delivered lumens 28 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 8.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Embedded luminaire for LED light source. Remote 220/240V power supply included.Pre-installation frame must be ordered separately. The ingress protection drgree is IP20.
