Product Detail | Bloxlimited

EWO

POLE LIGHT

OUTDOOR LIGHTING

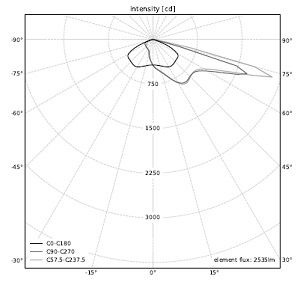

CO500_AP07-26W

The CO family of luminaires shares design features with the CN family, where square lighting units are placed within a circular luminaire head. This family is ideal for urban lighting applications including area, street, walkway lighting and lighting of pedestrian crossings. Optically, the CO can be configured with either A–Series high precision lens optics or T–Series low glare ewoLightTile for tunable white applications bringing humancentric lighting to urban spaces. PRTECTION INGRESS DEGREE IS IP66, IK08.

Specification

Power

26W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2535LM

Finishing

BLACK

IP Rating

IP66

Color Rendering

CRI80

Driver

ON/OFF DRIVER

MEYER

WINDOW LIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, high effiency safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, 2 drilled holes Ø 6 mm, spacing 259 mm, 4 x M6 grub screws to offset inclined surfaces, cable gland: 2 x M20, connecting terminal: 3 pole, high‑end optical system with specially designed reflectors achieve a uniform arch of light, integral driver (AC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 12° / 180°, luminous flux: 930 lm, wattage: 13 W, delivered lumens 70 lm/W, protection type IP67, protection class I, impact resistance IK08, dimensions (L×H×W): 270 × 70 × 125 mm, weight 1.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

LIGMAN

WALL LIGHT

INDOOR LIGHTING

Luminaire made of die-cast aluminium end-caps and extruded aluminium profile with powder coating. Single cable entry. Stainless steel fasteners in grade 316. PMMA diffuser with Opal (UGR <19) and micro prismatic (UGR <13) options for better glare control. Up and down light distribution options- Passive thermal management, integral control gear. Wireless control available through Bluetooth connection. Daylight and occupancy sensor options. Emergency module (1 or 3 hours) is available upon request with 3 options (BASIC, SELF-TEST, PRODALI). IP20.

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Luminaire made of aluminium alloy and stainless steel. Antique glass 2 fixing holes ø 5.2 mm, 70 mm spacing, 1 cable entry for mains supply cable, up to ø 10.5 mm, max. 3 × 1.5@, Plug connection. Connecting terminal 2.5@ Earth conductor connection. Lampholder E 27, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, r – Safety mark, c – Conformity mark.

LIGHTFORMS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

This ceiling recessed, IP65 rated, downlight has a high lumen output capability and is available in various finishes and colour temperatures, this light fitting is perfect for retail, workplace and hospitality lighting schemes.
