24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

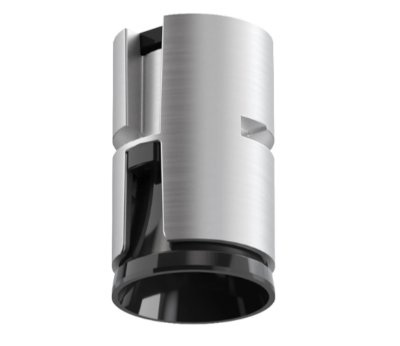

Recessed pin-hole downlight made of aluminium housing with white powder coated finish. Black finish available upon request. Luminaire come with 2 different sizes, 6-8W in Ø63mm and 8-15W in Ø90mm.

Luminaire made of aluminium alloy and stainless steel. Crystal bubble glass 2 fixing holes ø 5.2 mm, 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. Lampholder E 27 Safety class I. Protection class IP 44. Protected against granular foreign bodies > 1 mm and splash water. r – Safety mark. c – Conformity mark

Indoor indirect wall light made of aluminium housing. Surface mounting come with various color temperature from 2700K to 6000K upon request. Housing finish available black, silver and grey and 3 different length 250mm, 450mm and 600mm.
