LINEALIGHT

LED NEON TUBE

OUTDOOR LIGHTING

82216M20

Single emission led strip for outdoor application. The super warm LED light source with a flood light distribution is composed of 36 topled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP67,ik08.

Specification

Power

22W/M

Color Temperature

2700K

Light Source Type

LED

Lumen Output

1767LM/M

Finishing

WHITE

IP Rating

IP67

Color Rendering

CRI85

Driver

1-10V Driver

MEYER

SPOTLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket powder coated aluminum with tilt scale: 2 drilled holes Ø 7 mm, spacing 40 ‑ 60 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 41°, luminous flux: 1483 lm, wattage: 55 W, delivered lumens 27 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

LUCENT

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

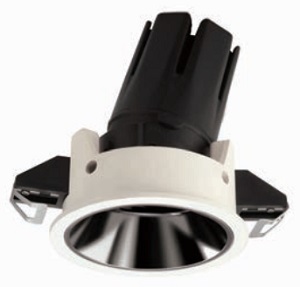

Edge90 fixed fire rated downlight with Ø45mm black Edge aperture and supplied with a separate installation kit with overlap flange for finished ceilings. Available in both white or black finish as standard. This product can accommodate the Lucent LED50 ONE GEN2 (90CRI) or LED50 ONE ULTRA (98CRI). This Fire Rated product was tested in a timber joist ceiling construction consisting of double thickness plasterboard ( 2 x 12.5mm) , wooden joists and (Egger) chipboard flooring.

PROLICHT

CEILING LIGHT

INDOOR LIGHTING

The recessed spot INVADER SEMI-ON is part of the product family INVADER. With 2 powder coated options 625 colour combinations can be achieved. Stated photometric values correspond to operation by 250 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 220-0572) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. A PROLICHT lense pack is optionally available.
