FORMALIGHTING

PENDANT

INDOOR LIGHTING

7290BM11-8030EWDA10

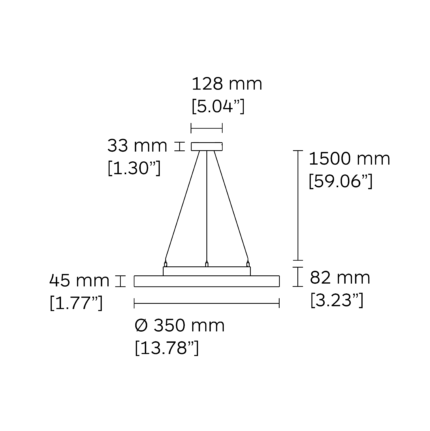

This next-generation Circo Pro, is designed as an ultra-slim, large circular light surface, delivering both direct and indirect light, with uniform and visually comfortable light distribution, boasting a UGR<19. Ceiling canopy made of cast aluminum. Housing in aluminum extrusion. With patent-pending highly efficient installation mechanism, for easy use. Available in four diameter sizes - 350mm, 450mm, 600mm and 900mm. In two versions for surface mounted or pendant installation.

Specification

Power

16.17W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2267.1LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.9 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.3 m length. The device features protection class III and can be ceiling-mounted, with a 236 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

BOLLARD

OUTDOOR LIGHTING

Single emission bollard & pole for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1320 lm, with a 138.9 lm/W nominal luminous efficacy.The device body is made of die-cast aluminium en ab - 46100 and features a black-grey ral7021 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass.

SPARK

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Surface mounted downlight, luminaire body made of aluminium housing with white powder coated finish. Reflector have chrome black, silver and white finish available. Black finish and honeycomb accessory available upon request.
