FORMALIGHTING

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

G4450035-9730OD0070

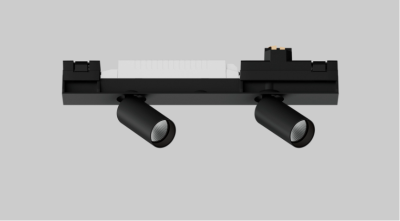

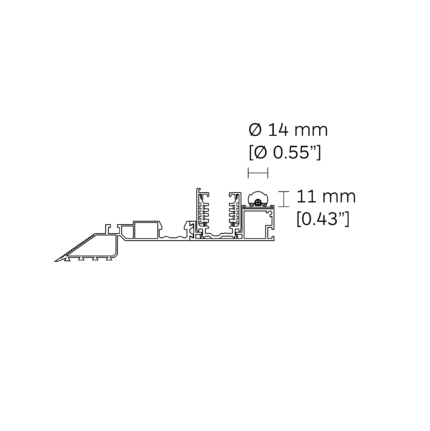

The new Canali edge is a revolutionary edge-less lighting system featuring easy and clean installation, eliminating wired connections and gearboxes in the cove. Canali Edge profile features easy-to-clip on adjustable spotlights, together with a dedicated channel for linear cove lights fixed by magnets, all in extruded aluminum. The Integrated 3 phase track system with DALI bus enables full DALI control on both linear and track spots. Small and powerful in-track integrated drivers make it very easy to move and reposition the spotlights and the linear lights.

Specification

Power

0.48W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

45LM

Finishing

ALUMINIUM

IP Rating

IP20

Color Rendering

CRI 97

Driver

ON/OFF DRIVER

LIGHTFORMS

UP/DOWN WALL LIGHT

INDOOR LIGHTING

A compact, cylindrical luminaire with a wide range of optical options—including an indirect version that delivers perfectly even ceiling illumination. Constructed from extruded aluminium, it accommodates optics, reflectors, or LED engines within a clean, minimal form. Control gear is mostly integral, with optional extras including sensors (CP, Simmtronic, Hytronik, Tridonic), emergency, daylight harvesting, Casambi, and Power over Ethernet (PoE).

PROLICHT

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

The DICE Invader ceiling cubes are typical examples of a purist and timeless design. The surface-mounted spotlights owe their special effect to the interaction between a reflector set deep in the housing and the cubic or cylindrical luminaire body. This combination ensures a glare-free and particularly pleasant light.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a spot light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98671 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
