FLOS

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Light Supply Adjustable Trim_03.6607.40

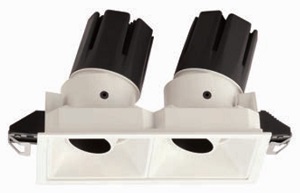

Light Supply Adjustable Trim

Recessed luminaire with LED light source. Remote 220/240V power supply included.

Specification

Power

Color Temperature

3000

Light Source Type

LED

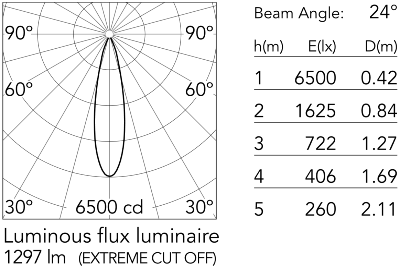

Lumen Output

1297

Finishing

WHITE

IP Rating

Color Rendering

Driver

ON/OFF DRIVER

ILIGHT

CONTROL SYSTEM

The SI-2-D System integration node is a DINrail mounted RS232 converter for interfacing with third-party devices to and from iLight’s iCANnetTM network. The SI-2-D enables control of a wide range of equipment through the iLight user interfaces such as: audio systems, TVs, projectors, blinds, curtains, heating and HVAC systems, Security & Fire alarms and BMS.

FLOS

WALL LIGHT

INDOOR LIGHTING

Outdoor Wall light made of aluminumbody with diffuser in transpar-ent polycarbonate. The concrete finishing is made by fastening a poured cement plate reinforced with fiberglass using a single component high strength, high-resistance adhesive. The aluminum versions arefinished with a high-re-sistance coating after a sandblasting treatment of all components to make the surface porous and ensure a greater adhesion of the paint, the external coating is applied with a double layer with epoxy powders

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket powder coated aluminum: 2 drilled holes Ø 8.5 mm, spacing 50‑70 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 85, 2 SCDM, service life L90/B10 > 50.000 h, luminous flux: 2550 lm, wattage: 26 W, delivered lumens 98 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 184 × 70 × 184 mm, weight 2.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
