LIGMAN

BOLLARD

OUTDOOR LIGHTING

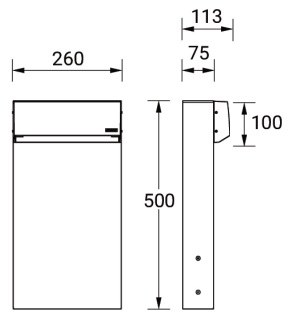

ABACUS 4-AB-10001

Outdoor bollard made of die-cast aluminium housing extruded aluminium profile. Column pre-treated before powder coating ensuring high corrosion resistance. Single cable entry. One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket.Frosted glass diffuser. Integral control gear. IP65,IK09.

Specification

Power

11W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

765LM

Finishing

BLACK

IP Rating

IP65

Color Rendering

CRI80

Driver

ON/OFF DRIVER

MEYER

UP/DOWN WALL LIGHT

OUTDOOR LIGHTING

Housing made corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, UV stabilised, impact‑resistant polycarbonate cover , silicon gasket, with 4 stainless steel screws, wall arm: 2 drilled holes Ø 6,5 mm, spacing 282 mm, tilt range: 310°, cable gland: PG11, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 15° / 103°, luminous flux: 1175 lm, wattage: 15 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK10, windage area 0,04 m², dimensions (L×H×W): 328 × 47 × 135 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

SPARK

TRACKLIGHT

INDOOR LIGHTING

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20

ENDO

SPIKE LIGHT

OUTDOOR LIGHTING

Carrying the same DNA as the Indoor series, the brand new MINI30 Outdoor Spotlight offers the same beam angle lineup in an IP65-rated body. Carrying the same DNA as the Indoor series, the brand new MINI30 Outdoor Spotlight offers the same beam angle lineup in an IP65-rated body.

LINEALIGHT

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

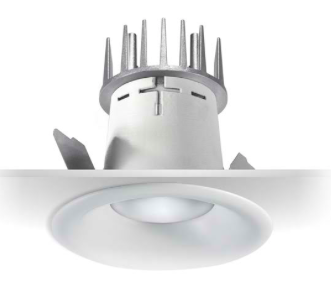

Single emission recessed downlights for indoor application. The super warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 1487 lm, with a 135.2 lm/W nominal luminous efficacy.The device body is made of uv resistant polycarbonate and features a white finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.3 kg. The power supply driver is not provided and is to be ordered separately.The total absorbed power is 11 W. The power supply cable is included and features a 0.15 m length.The device features protection class III and can be ceiling-mounted, with a 66 mm diameter hole (in plasterboard).Compliant with the EN 60598-1 standard and its specific provisions.
