Products

LIGMAN

BOLLARD
OUTDOOR LIGHTING

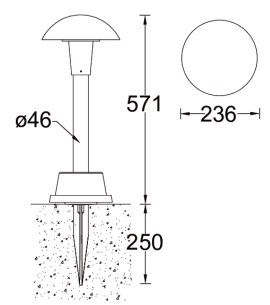

MUSHROOM 2_MU-70244-W30

Outdoor bollard made of die-cast aluminium housing extruded aluminium profile. Column pre-treated before powder coating ensuring high corrosion resistance. Single cable entry. One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket.Frosted glass diffuser. Integral control gear. IP65,IK08.

Specification

Power
14W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
610LM
Finishing
BLACK
IP Rating
IP65
Color Rendering
CRI80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
LINEAR LIGHT
OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptic flood (20°÷29°) x (41°÷60°) light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1164 lm, with a 157.3 lm/W nominal luminous efficacy. The device body is made of aluminium alloy 6060 and features a anodised aluminium finish.

LUTRON
CONTROL SYSTEM
CONTROL SYSTEM

The (W)QSPS-DH-1-75 QS link power supply providesup to 75 Power Draw Units (PDUs) on a QS link. The(W)QSPS-DH-1-75 powers additional compatibleaccessories and devices, allowing them to be addedto a QS system.

LIGMAN
BOLLARD
OUTDOOR LIGHTING
Outdoor bollard made of die-cast aluminium housing extruded aluminium profile. Column pre-treated before powder coating ensuring high corrosion resistance. Single cable entry. One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket.Frosted glass diffuser. Integral control gear. IP65,IK08.
WE-EF
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Luminaire can be mounted for up or down lighting.
