FORMALIGHTING

TRACKLIGHT

INDOOR LIGHTING

6640BC32-9730BSD010

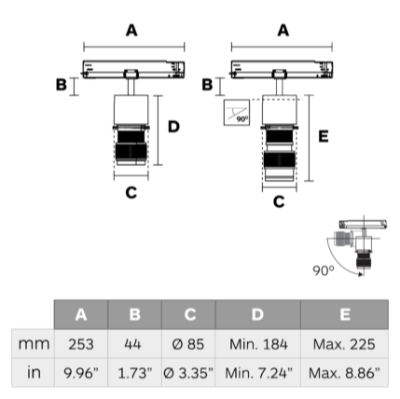

Advanced, multi-functional LED track mounted projector, tiltable vertically 0°-90° and rotatable horizontally 350°. With built-in bidirectional zooming lens with sharpness adjustability, and lens rotation. Adjustable shutters to re-frame the beam to the desired size and shape (circle, square/rectangle, or irregular four-sided shapes). Compatible with Gobo insertion for logo. High-precision optics for sharp outlines and high degree of lighting uniformity.

Specification

Power

18.7W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1587.6LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 97

Driver

ON/OFF DRIVER

PUK

FLOODLIGHT

OUTDOOR LIGHTING

Floodlight for outdoor installation on a pole diam. 60 mm or 76 mm, with 355° swivel pole attachment and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel pole joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 1 COB CREE “CXB 3590” LED. IP66 rating.

BEGA

FOOT LIGHT

OUTDOOR LIGHTING

Recessed wall luminaire with light directed downwards, for flush or surface mounting installation. Luminaire for the uniform and glare-free illumination of ground surfaces. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK10. DIMENSION5: (W)150x(H)150x(D)100mm.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

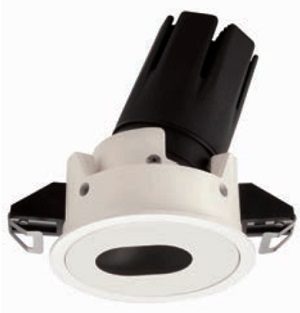

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.021 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 15 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
