ELR

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

SNOOP 4 SURFACE_100PLE

Compatible with 100CLO, 100CLE and 100PLE series LED modules.Colour temperature options 2700K, 3000K, 4000K, 5000K, WarmDim. Colour rendering index 85 or 95. Up to 50,000 hours L80 lamp life with LM80 tested LED chip packages. Beam pattern options ClassicPRO 12, 20, 35, 60 Luminous flux 1063lm to 3000lm depending on LED module.Supplied with non-dimmable or phase0-10VDALI dimmable LED driver. Automated Thermal Protection System. ComfyEYE, reduced flicker percentage, Interchangeable LED module system, Optional colour and light effect filters, and honeycomb anti-glare louvre, For the latest specifications please refer to the website. The ingress protection degree is IP40.

Specification

Power

28W

Color Temperature

3000K

Light Source Type

LED 25W

Lumen Output

2880LM

Finishing

WHITE

IP Rating

IP40

Color Rendering

CRI85

Driver

DALI Driver

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

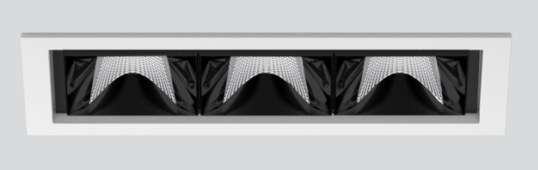

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

LINEALIGHT

TRACKLIGHT

INDOOR LIGHTING

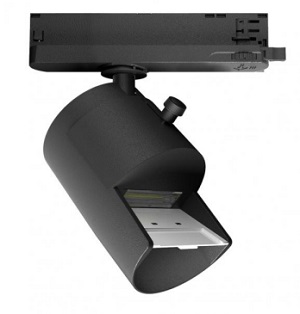

Single emission projectors for indoor application. The warm white LED light source with a adjustable wall washer light distribution is composed of 8 powerled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating. The ingress protection degree is IP20.

IGUZZINI

TRACKLIGHT

INDOOR LIGHTING

Luminaire made of painted extruded aluminium, frame and caps made of injection-moulded thermoplastic. Very Wide Flood optic (80°) in a Space Opti-Diamond (PMMA) version with a rear cover available in a White (Transparent White) or Black (Transparent Black) version. Integrated DALI dimmable power supply with CRI80 direct emission Neutral white (4000K) monochrome LED lamp (Mid-Power).

FLOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Eclectic Ø90. Non-adjustable Downlight. “Flat” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 49º cut-off angle. IP54 water tightness. Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP54.
