BEGA

FLOODLIGHT

OUTDOOR LIGHTING

84506K3

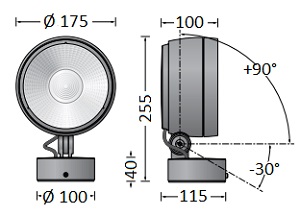

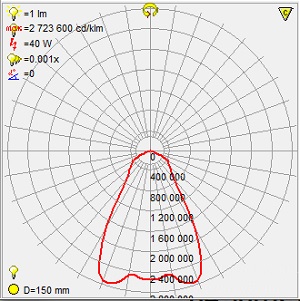

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Clear safety glass Silicone gasket Optical silicone lens · BEGA Hybrid Optics® Reflector surface made of pure aluminium Rotation range of floodlight 350°. IK09 Symmetrical wide beam light distribution Half beam angle 64° By changing the diffuser lense it is possible to alter the symmetrical light distribution into a flat beam light distribution. Luminaire data for the light planning program DIALux for outdoor lighting, street lighting and indoor lighting. The ingress protection degree is IP65,IK09.

Specification

Power

42W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

3857LM

Finishing

GRAPHITE

IP Rating

IP65

Color Rendering

CRI90

Driver

ON/OFF DRIVER

XAL

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

Round luminaire housing in aluminium; extremely flat design (only 15mm); modern shape in an elegant design for high demands; surface black powder coated; suspended luminaire with adjustable pendant rod mounting (chrome) 1000mm, feed in rod; direct light distribution through LGP body (Light Guiding Prism); side coupled light directed downwards by laser engraving; light control via highly reflective reflector material; indirect light component with special PCBs for increased luminous flux and maximum ceiling illumination; microprismatic PMMA cover; completely homogeneous illumination; same light density for all surface lights with the same components.

UNILAMP

UNDERWATER LIGHT

OUTDOOR LIGHTING

ATOM is a ground recess indicator light and is also suitable for under water light application. ATOM has been designed and manufactured at highest attribute. Utilizing CNC lathed stainless steel body presented exceptional aesthetic as well as sleek tough feeling. LED chips and lenses are from world renowned manufacturers. GFR polymer recess kit allows it to be installed in most extreme environment. Ensuring integrity of manufacture ATOM is supplied with a factory fitted pre-wide cable for ease of installation. The Anti-Humidity kit eliminate condensation inside the housing and prolong the life time of the luminaire. An optional IP68 connectors is recommended as an accessory for trouble free installation.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 6 powerled LEDs. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.390 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.17 m length. The device features protection class III and can be ceiling-mounted, with a 215 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LEDX LIGHT

FLOODLIGHT

OUTDOOR LIGHTING

Adjustable LED projector with four (4) heads, a yoke allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. Each head have a pivot point that also allow 90° tilting relative to the horizontal plane. Mechanical aiming locks for both for rotation about the vertical axis and tilting relative to the horizontal plane. 12 pieces matching adapter / clamp for mounting on a pipe about 5 cm in diameter pro lamp and mounting bracket.

DIMENSION : L278*W401*H230MM
