LINEALIGHT

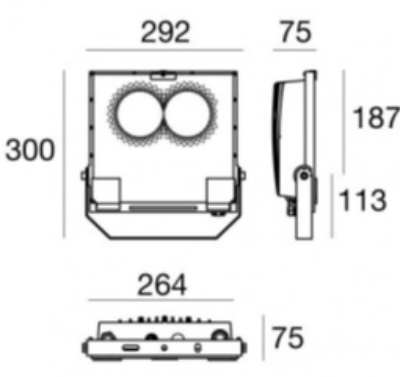

Floodlight designed to use LED lamps and an A60 optic. Consisting of an optical assembly, an arm with a swivel joint and a glassholding frame and base in aluminium alloy, subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation and sealing.The product with a base can be adjusted on a vertical plane by ±45° and on a horizontal plane by 360°.The product includes a Warm White monochrome circuit with a Black Optismart Lens optical system.

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; 1-10V Dim Driver; System Power 21W; measurements Ø110mm x 131mm; ceiling cutout of Ø100mm with a narrow mounting trim; ceiling thickness 1-25mm; CCT 3000K with a System luminous flux of 1450lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty.

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, lockable, tilt range: 0‑15°, lockable, 0,8 m cable H07RN‑F3G1, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 31°, luminous flux: 849 lm, wattage: 11 W, delivered lumens 77 lm/W, protection type IP68, protection class I, impact resistance IK10, dimensions: Ø 180 mm, width 152 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks.

ArtCore is a compact, PoE-powered, Art-Net controller and integration gateway enabling larger systems to be assembled and intuitive lighting control achieved. Providing centralised lighting control, automation and system integration capabilities, artCore delivers solutions of scale for environments requiring robust and reliable lighting control. With its companion app or an artPlay touchscreen, artCore provides four universes of control (2048 channels) with static and dynamic.
