LIGMAN

BOLLARD
OUTDOOR LIGHTING

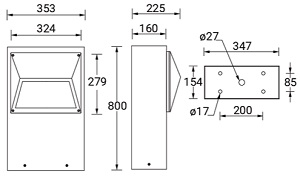

EC-10505-G-8030

Outdoor bollard made of die-cast aluminium housing extruded aluminium profile. Column pre-treated before powder coating ensuring high corrosion resistance. Single cable entry. One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket.Frosted glass diffuser. Integral control gear. IP65,IK07.

Specification

Power
23W
Color Temperature
3000K
Light Source Type
LED

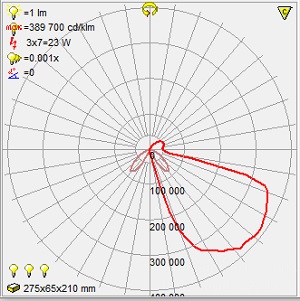

Lumen Output
713LM
Finishing
BLACK
IP Rating
IP65
Color Rendering
CRI80
Driver
ON/OFF DRIVER

See more

PHOS
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
The Eclipse Round is a fixed recessed downlight with a Ø80mm bezel and features a beautifully sculpted anti-glare baffle inside a Ø32mm aperture. Unique, elegant small aperture. 360° Rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
PUK
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
Round ceiling-recessed luminaire for outdoor installation, hard anodized black aluminium body and stainless steel AISI 316 front trim, tempered safety glass, moulded silicone gasket. Remote constant current max 700 mA driver needed, with 1 CREE XHP35 HD LED. IP68 rating.
WE-EF
BOLLARD
OUTDOOR LIGHTING
IP55, Class I. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Polycarbonate prismatic lens. Silicone rubber gaskets. Impregnated hardwood post. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output.
LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68,IK08.
