LIGMAN

WALL LIGHT
INDOOR LIGHTING

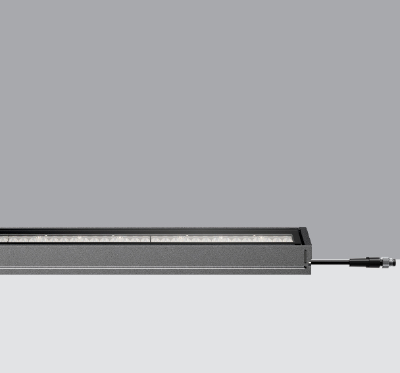

NYB-30022-O-W30

Luminaire made of die-cast aluminium end-caps and extruded aluminium profile with powder coating. Single cable entry, stainless steel fasteners in grade 316. PMMA diffuser with Opal (UGR <19) and micro prismatic (UGR <13) options for better glare control. Up and down light distribution options. Passive thermal management and integral control gear. Wireless control available through Bluetooth connection. Daylight and occupancy sensor options. Emergency module (1 or 3 hours) is available upon request with 3 options (BASIC, SELF-TEST, PRODALI). IP20.

Specification

Power
25W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2313LM
Finishing
ALUMINIUM
IP Rating
IP20
Color Rendering
CRI80
Driver
ON/OFF DRIVER

See more

MEYER
PROJECTOR LIGHT
OUTDOOR LIGHTING
Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 48° / 52°, luminous flux: 5288 lm, wattage: 46 W, delivered lumens 116 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 190 × 160 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
BEGA
FOOT LIGHT
OUTDOOR LIGHTING
Wall luminaire with the unshielded light for surface mounted installation.LED recessed luminaire without power supply unit luminair made of cast auminium, aluminium and stainless steel. IP65,IK08.
LINEALIGHT
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The super warm LED light source with a flood light distribution is composed of 1 arrayled LEDs. Luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44;
LUCI
LED LIGHT BAR
INDOOR LIGHTING
Tunable white strip light with two CCT LEDs alternating at narrow pitch ideal for concealed or backlight. Free choice of two different CCTs efficiently emphasizing, design intent,ambiance, and circadian lighting.
