Product Detail | Bloxlimited

NEKO

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

DASH 50 Pendant D5P01411-930LPF-BO-U

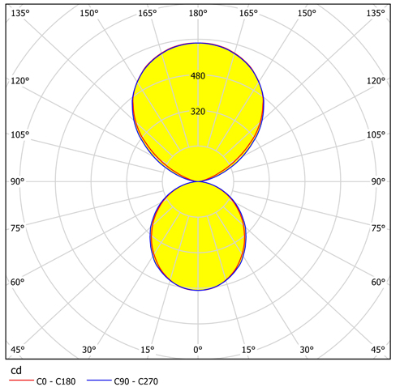

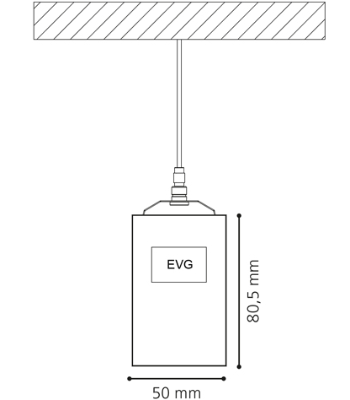

Pendant LED luminaire with direct/indirect beam made of high-quality extruded aluminium profile; black powder-coating finish – textured matt (RAL 9005); luminaire incl. white canopy (110mm x 65mm x 36mm) with transparent feeder cable as well as cable hangers and quick-release clamps for stepless regulation of mounting height; ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 32W – Low Power; Dimensions of the profile channel (LxWxH): 1411mm x 50mm x 80.5mm; luminaire's weight is approximately 4200g; CCT 3000K with a System Luminous Flux of 3649lm; high color rendering at an index of CRI>90; Binning initial <= MacAdam 3; after a lifetime of 50000h L80 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) opal; degree of housing protection IP20; RG<1 (EN62471); protection class I

Specification

Power

32W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

3649LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

SIMES

SPOTLIGHT

OUTDOOR LIGHTING

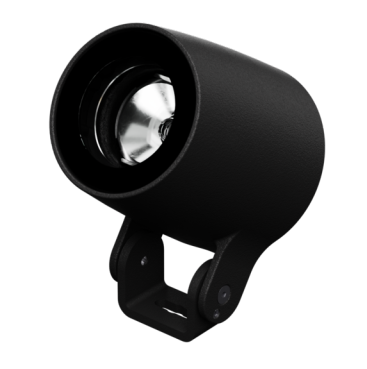

Outdoor surface mount spike pole luminaire made of aluminium die cast housing in EN AB-44100 (low copper content) with high resistance against corrosion. Stone wash surface treatment prior to painting process. 2 mm thick front trim in Stainless Steel - Grade AISI 316L with 2,5 -3% molybdenum content, with high resistance against corrosion. A4 grade Stainless Steel screws. IP66, IK07.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 6 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.24 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 76 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

XAL

CEILING LIGHT

INDOOR LIGHTING

Ring shaped surface luminaire housing made of rolled aluminium extruded profile, seamlessly welded and black powder coated. The light inset consisting of highly reflective coated die-cast aluminium for improved thermal management. HPO (High Performance Opal) cover for uniform illumination; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; sound absorbing elements available; energy-efficient LEDs with very good colour rendering. DIMENSION : D3060MM * H80MM

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99762 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
