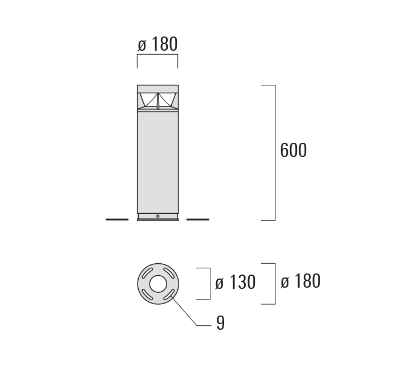

WE-EF

BOLLARD

OUTDOOR LIGHTING

114-9179

IP66, Class I. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Polycarbonate lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two-sided light output versions for 360° symmetric distribution. One-sided light output versions with 'rearward glow' feature. Ideal for pathway lighting applications. Luminaire spacing up to 5-8 m.

Specification

Power

18W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

825LM

Finishing

ANTHRACITE GREY

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

SIMES

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

Fixing base and recessing box in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Mechanical resistance IK 10 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: G. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

PLUS LIGHT TECH

SPIKE LIGHT

OUTDOOR LIGHTING

The re-engineered reflector mechanics reduces field angles and improves the uniformity of the beams. Tumblerr family reflectors are compact solutions for outdoor Wallmount, Garden Spike light and Bollards. Beam angle options here are 15/28/38/55. The luminaire housing is constructed with Pure Aluminum CNC Machined Grade with copper content less than 1% to have uniform outdoor grade different anodized finish or special powder coating.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Recessed rectangular multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; suitable for ceiling thickness of 2-25 mm;

equipped with four flood square light elements; symmetrical light distribution with precise radiation characteristic. High quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 19. Protection IP20.

IGUZZINI

PENDANT

INDOOR LIGHTING

Miniaturised pendant system with LED lamp and including an adapter for installation on a 48V low voltage Filorail track ideal for zenithal accent lighting. The adapter is made of a thermoplastic material and includes a driver circuit with PWM (Pulse with modulation) technology. The integrated PWM technology allows the light intensity to be adjusted by creating the effect of a dimmed light without altering the quality of the light.
