Archiline_F_81593M27

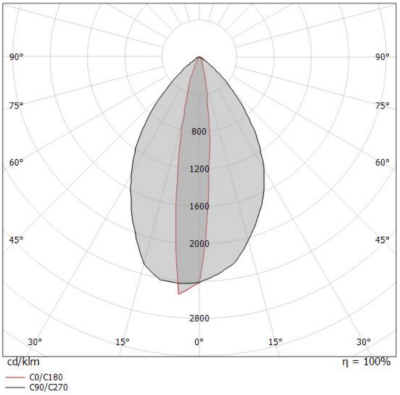

Single emission lines for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 18 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 5076 lm, with a 139.1 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The total absorbed power is 41 W. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98726(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
Specification
- Power
- 36.5W.
- Color Temperature
- 2700K
- Light Source Type
- LED
- Lumen Output
- 3417
- Finishing
- Black anodised aluminum
- IP Rating
- IP67
- Color Rendering
- CRI 80
- Driver
- ON/OFF DRIVER
