IGUZZINI

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot

Dot designed to be integrated in new or retrofitted handrails. Suitable for outdoor: IP66, IK10, and anti-vandalism. Flat and curved types. 3 beam angles: 60o, 120o and 90o (asymmetric). Luminous efficiency: 100 lm/W. 316 stainless steel unibody dot. Polycarbonate lens. Accessories: Installation tool and M16 Drill jig equipment.

LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Available in one-light versions and groups of two and four lights. Driver not included, the driver has to be directly connected to the embedding frames.

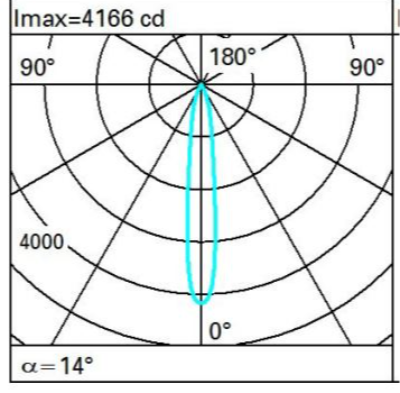

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, 2 drilled holes Ø 7 mm, spacing 30 ‑ 35 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 1729 lm, wattage: 23 W, delivered lumens 75 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,013 m², dimensions (L×H×W): 126 × 97 × 126 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
