FLOS

Housing: cast aluminium, with connec- tion cable L 850mm. 0°-40° tilt, 360° rotation. Lockable angles of tilt and rotation.

Luminaire made of aluminium alloy, aluminium and copper. Luminaire top made of copper. Crystal glass. Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm. 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-280 V. Safety class I Protection class IP 23. Protected against granular foreign bodies, > 12 mm and showers up to 60°, r – Safety mark, c – Conformity mark

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, wall washer lens with optical structure and integral, adjustable glare shield, tilt range: 0‑20°, lockable, with Heatslide mechanism for optimal heat dissipation, 0,8 m cable H07RN‑F3G1, integral driver (AC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 25° / 75°, luminous flux: 672 lm, wattage: 19 W, delivered lumens 35 lm/W, protection type IP68 (1,5 m), protection class I, impact resistance IK10, dimensions: Ø 220 mm, width 152 mm, weight 4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

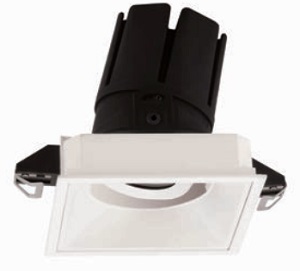

The adjustable downlight that highlight the desired subject or place and provide optimum illumination by being nondescript. The simplicity of its form provides smooth integration in architectural features. The luminaire come with 3 different colors metallic silver, black and white.
