IGUZZINI

Suspended mount downlight luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Black finish and honeycomb accessory available upon request.

Ring luminaire with 12 optical elements for LED lamps - fixed optics. The optic system guarantees a high level of visual comfort and no glare. The body includes a radiant surface made of die-cast aluminium. Version includes a perimeter surface frame. High definition reflectors made of thermoplastic material vacuum-metallised with aluminium vapours, integrated in a set-back position in the antiglare screen. Supplied with a power supply unit connected to the luminaire.

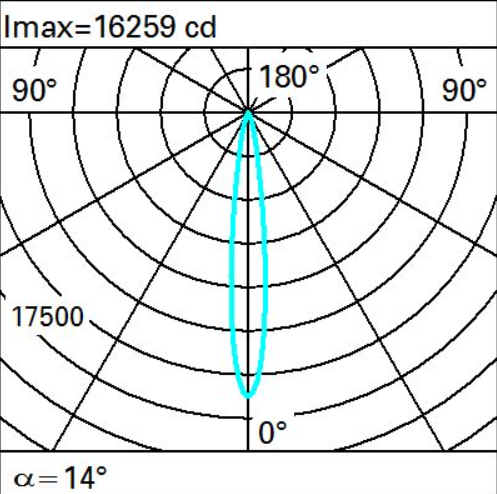

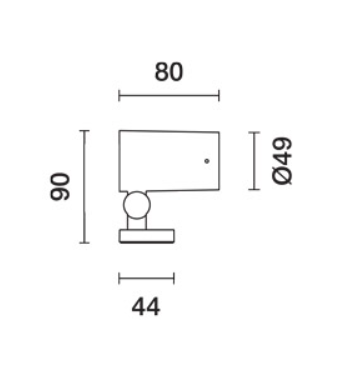

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.180 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

BN-2-D is a DINrail mounted bridging module that allows 2 or more iLight iCANnetTM network segments to be connected together or arranged logically into floors or areas for ease of management. The bridge is also used to extend the network as a repeater where more than 500m of cabling is required or more than 100 network devices are used on one segment. BN-2-D also allows network messages to be filtered to ensure optimal performance in larger networks. BN-2-D allows multiple network segments to be connected together, enabling up to 65,000 devices to exist on a single system. It also improves reliability of larger systems by isolating and containing any network cabling faults when used correctly.
