FLOS

Spotlight designed to use LED lamps and a Flood optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance.

IP67 flexible 24 V linear LED strip up to 7.5 m in length. Polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gazes and protection against abrasion. White lower casing for higher efficiency (better light extraction). Delivered with 200 mm IP67 mini connectors on both ends. Constant Voltage LED strip with 62.5 mm and a small LED pitch of 8.93 mm the first choice for outdoor applications with a direct top view or indirect lighting with low construction depths – with perfectly homogeneous light. Assembled using state of the art automated Reel to Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

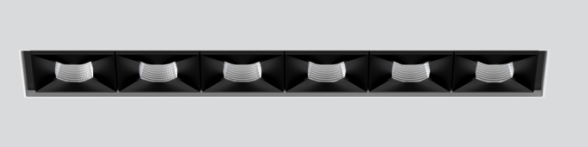

The Soft XL recessed Ø80mm luminaire with an elegant small aperture made from machined aluminium with anti-glare deep set sculpted design for high visual comfort giving a soft glowing effect. Available in narrow and medium-light distribution beams.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, housing locked with a grub screw, ceiling mounting: 2 drilled holes Ø 4.5 mm, spacing 35 mm, cable gland: cable entry for recessed cable Ø 7‑10 mm , connecting terminal: 3 pole, highly efficient aluminum hybrid‑reflector with lens for narrow beam control , integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 326 lm, wattage: 5 W, delivered lumens 65 lm/W, protection type IP65, protection class I, impact resistance IK07, windage area 0,005 m², dimensions (L×H×W): 61 × 87 × 66 mm, weight 0.57 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
