LEYARD

LED CURTAIN SCREEN

OUTDOOR LIGHTING

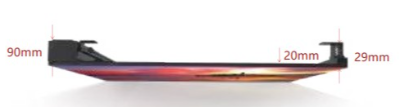

Zebra SMD-20

Zebra Series: Application environment : Outdoor ·Working life : ≥100,000 hours ·Cabinet material : Aluminum alloy ·Brightness : 1000 ~ 5000cd / ㎡ ·Installation method : Hoisting / Fixing ·Certification : CE / CCC / FCC

Can be customized size and shaped.

Pixel Pitch (H/V): 20mm, Pixel Configuration （SIDE):1 x SMD2727, Brightness（CD/m²):1000 ~ 7000, Pixel Density（dot/m²):2500, Transparency: 60%, Cabinet Resolution（dot): 50x50, Module Size（mm): 1000 x 28, Module Resolution: 50 x 2 dot, Cabinet Weight: ≤16Kg / m², Ingress Protection (Front/Back): IP65, Viewing Angle (H/V), 120°/ 120°, Viewing Distance:>20m, Gray Scale: 16 bits, Avg.Power Consumption（W/m²): 600, Refresh Rate（Hz): 3840, Input Voltage: AC100 ~ 240V , 50 / 60 Hz, Drive Mode: Static, Control Mode: Synchronous display with control PC by DVI, Support Input: Composite , S-Vido , Component , VGA , DVI , HDMI , HD_SDI, Operating Temperature: -40°C ~ 50°C（work), - 40°C ~ 60°C（store), Operating Humidity: 35% ~ 85%（work), 10% ~ 90% （store）

Specification

Power

600W/sq.m

Color Temperature

Light Source Type

LED

Lumen Output

Finishing

WHITE

IP Rating

IP65

Color Rendering

Driver

DMX 512

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

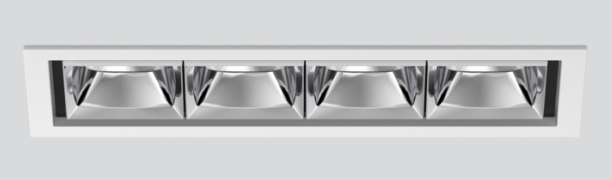

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four narrow medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 22°; high quality reflector with micro-faceted, aluminumvaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

SPARK

SURFACE TRACKLIGHT

INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different type of bean angles.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98672(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

COLORS

LED STRIP

INDOOR LIGHTING

Max.length : 5000mm, Cutting unit : 8leds/100mm, LED pitch : 12.5mm, Min.bend diameter : 60mm, Mounting : PVC clip/silicone clip. Input voltage DC24V.
