LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

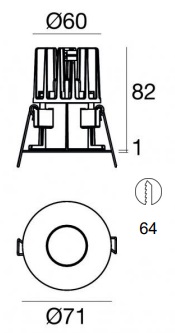

VOS_ EVO_77330W45

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The luminaire body is made of technopolymer and features a white ral 9003 finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40.

Specification

Power

Color Temperature

3000k

Light Source Type

LED

Lumen Output

550LM

Finishing

WHITE

IP Rating

IP40

Color Rendering

CRI 90

Driver

DALI DRIVER

IGUZZINI

TRACKLIGHT

INDOOR LIGHTING

Miniaturised adjustable spotlight with adapter for installation on 48V low voltage track. Made of die-cast aluminium with passive dissipation system. The adapter made of a thermoplastic material includes the DC/DC driver circuit with a DALI dimmable function. Integrated «power line» technology allows each spotlight mounted on the track to be regulated separately. The swivel joints allow the spotlight to be rotated by 360° and tilted by 90°. The set back position of the optic unit guarantees a high level of visual comfort. Thermoplastic high definition lens with extra filter for variable optic. A rapid tool-free system for connecting the adapter electrically and mechanically to the track.

LUMASCAPE

UNDERWATER LIGHT

OUTDOOR LIGHTING

LINEALIGHT

RECESSED LINEAR LIGHT

INDOOR LIGHTING

Single emission lines for indoor application. The warm white LED light source with a general lighting light distribution is composed of 54 topled LEDs with CCT of 3000 K and a CRI 80 the source luminous flux is 2020 lm, with a 134.7 lmW nominal luminous efficacy. The device body is made of aluminium and features a aluminium finish, processed by means of anodisation the diffuser is made of PC. The ingress protection degree is IP40 the total weight is of 2.15 kg. The power supply driver is included in the delivery. The total absorbed power is 15 W. The device features protection class I and can be wall lights or ceilingmounted, with a 43 x 1005 mm hole in plasterboard.
