LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING

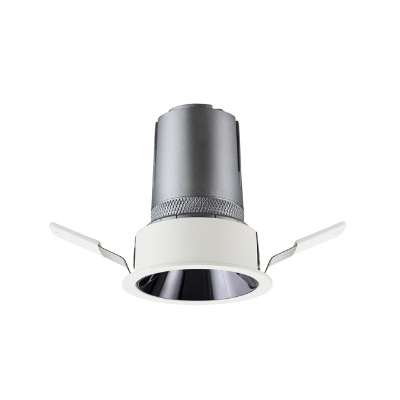

QUANTUM_ R EVO_77346M45

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The luminaire body is made of technopolymer and features a white ral 9003 finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40.

Specification

Power
9W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
387LM
Finishing
WHITE
IP Rating
IP40
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

MEYER
SPOTLIGHT
OUTDOOR LIGHTING
Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket powder coated aluminum with tilt scale: 2 drilled holes Ø 7 mm, spacing 40 ‑ 60 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 41°, luminous flux: 1483 lm, wattage: 55 W, delivered lumens 27 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
WE-EF
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Luminaire can be mounted for up or down lighting.
SPARK
ZOOMABLE SPOTLIGHT
INDOOR LIGHTING

Recessed adjustable Zoomable spotlight, luminaire body made of aluminium housing with white powder coated trim finish. Black finish available upon request.

LIGHTFORMS
SURFACE MOUNTED LIGHT
INDOOR LIGHTING
Round Lightplane 2 is a compact and streamlined cylindrical luminaire that features integral drivers along with a high-impact satin diffuser lens. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. Available in suspended or wall scone (contact factory) models.
