LINEALIGHT

Luminaire made of copper, brass and stainless steel. Crystal glass coated 2 fixing holes ø 5.5 mm, 108 x 108 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-280 V. Safety class I. Protection class IP 64. Dust-tight and protection against splash water. Impact strength IK07. Protection against mechanical. impacts < 2 joule, r – Safety mark, c – Conformity mark.

Miniaturised recessed rectangular luminaire with five optical elements with Warm White LED light sources - fixed Wide Flood optic, DALI. Comprises a (round) optical compartment, frame, glass, outgoing cable and installation accessories to be ordered separately, where necessary. The optical compartment and frame are made of aluminium alloy and subjected to a multi-step pre-treatment process, the main phases of which include degreasing

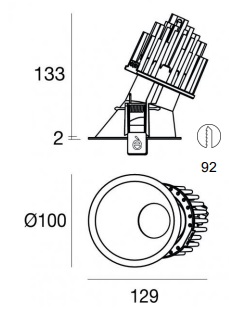

Round shape mounting trim in cast aluminum with brackets for trim installation on a ceiling thickness max. 20mm. Occhio Pin is available in two different designs, Pin and Slot. IP44 version for water protection ideal for bathroom. Designed with deep regressed lamp position for glare-free comfort. Adjustable version tilltable vertically 0-35°.

The Occhio Pin provides a consistent ceiling appearance whilst the Occhio Slot provides the maximum adjustment in this type of small fixture.

Single emission projectors for indoor application. The warm white LED light source with a adjustable focus light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.612 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
