LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

WARP_Q_90768W60

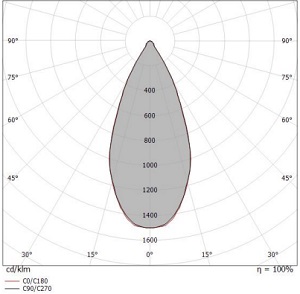

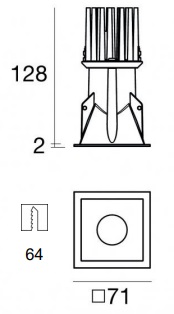

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.

Specification

Power

10W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

769LM

Finishing

WHITE

IP Rating

IP44

Color Rendering

CRI 80

Driver

DALI DRIVER

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

LINEALIGHT

FLOODLIGHT

OUTDOOR LIGHTING

Outdoor floodlight come with natural white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. Luminaire body made of die-cast aluminium EN AB - 46100 and features a grey RAL 9006 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66; IK09

LIGHTFORMS

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

Lightplane 6 is a large, linear luminaire that provides direct or indirect illumination in suspended, wall and surface-mount models. The luminaire features an integral driver along with a high impact satin diffuser. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+ White.
