FOSCARINI

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

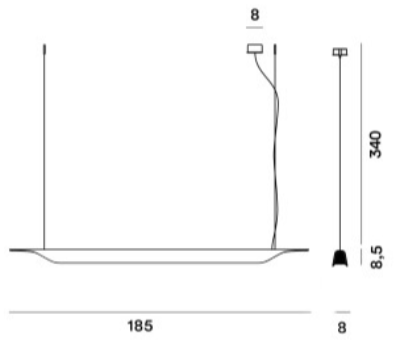

Troag

An unprecedented wooden suspension lamp, mid-way between Nordic culture and Mediterranean creativity, Troag is a light and linear sign in space.

Specification

Power

43W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

6080LM

Finishing

NATURAL (WOOD)

IP Rating

IP20

Color Rendering

CRI>90

Driver

0-10V Driver

FAGERHULT

LINEAR LIGHT

INDOOR LIGHTING

Connection

The luminaire is equipped with an access hole for cabling on the top. Knock-out at start luminaires short end for surface mounted mains cable. The luminaire unit is equipped with a through-wiring cable (5x2.5 mm²) and a snap-in connection in each end-cap.

Design

Luminaire body in natural anodised extruded aluminium finish.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1074 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.690 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 12 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 270 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

CUSTOMIZED

POLE LIGHT

OUTDOOR LIGHTING

Custom made outdoor floor lamp . Refer tothe LPL1 lighting detail.

SPARK

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed fixed downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish. Cut-out Ø130mm.
