WE-EF

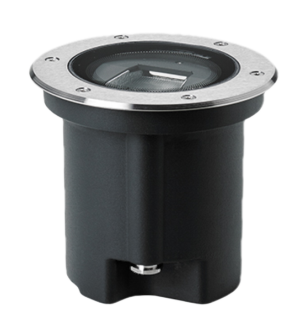

INGROUND UPLIGHT

OUTDOOR LIGHTING

ETC320_185-7710+185-9612

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.

Specification

Power

Color Temperature

3000K

Light Source Type

3 LEDS

Lumen Output

661LM

Finishing

STAINLESS STEEL

IP Rating

IP69

Color Rendering

CRI 80

Driver

1-10V DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Single emission downlights for outdoor application. The super warm LED light source with a flood light distribution is composed of 1 arrayled LEDs The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67.

LUMASCAPE

SPIKE LIGHT

OUTDOOR LIGHTING

The dAxis-7 is an expertly engineered directional luminaire with a 45º or 60º shield to illuminate a variety of spaces in 3, 6 or 9 LED. A zoning/dimming version is also available for use with ZDClink® Controllers.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 11 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.1 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
