Products

WE-EF

INGROUND UPLIGHT
OUTDOOR LIGHTING
EVC120_185-7670

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 1.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

Specification

Power
12W
Color Temperature
3000K
Light Source Type
6 LEDS
Lumen Output
1625LM
Finishing
STAINLESS STEEL
IP Rating
IP69
Color Rendering
CRI 80
Driver
DALI DRIVER

See more

LINEALIGHT
SPIKE LIGHT
OUTDOOR LIGHTING
Single emission projectors for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1267 lm, with a 110.2 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP66.

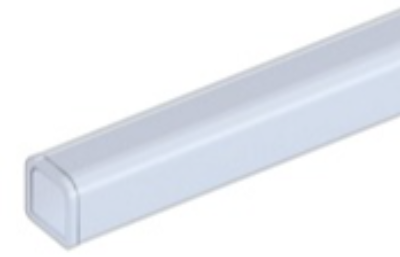

LINEALIGHT
LINEAR LIGHT
OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a general lighting light distribution is composed of 120 topled LEDs. Luminaire body is made of PC and features a opaline finish the diffuser is made of PC. The ingress protection degree is IP67. IK08

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector.

SPARK
SPIKE LIGHT
OUTDOOR LIGHTING

Outdoor Spike light made of die-cast aluminium housing and in powder coated black finish. Silicon rubber gasket and external driver. Suitable for garden, balconies terraces and walkway application. Luminaire come with 3 differents wattage 5W, 7W and 12W.
