WE-EF

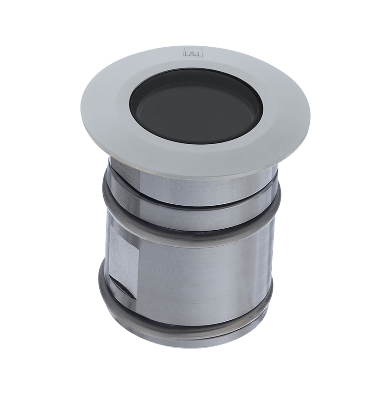

INGROUND UPLIGHT

OUTDOOR LIGHTING

EVC340_185-9763

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

Specification

Power

36W

Color Temperature

3000K

Light Source Type

24LEDS

Lumen Output

4440LM

Finishing

STAINLESS STEEL

IP Rating

IP69

Color Rendering

CRI 80

Driver

DALI DRIVER

XAL

TRACKLIGHT

INDOOR LIGHTING

Cylindrical tracked spotlight in die-cast aluminium with 3PH universal adapter; classic style in elegant design for discerning requirements; surface black powder coated; 360° rotatable and 90° tiltable; converter integrated in the power track adapter; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 k.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99763 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
