WE-EF

INGROUND UPLIGHT
OUTDOOR LIGHTING
ETV149_186-0360

IP69. IK08. Marine-grade all aluminium construction. Anodized aluminium extrusion. PCS hardware. Silicone rubber gasket. Safety glass lens with opal diffuser. Luminaire can be driven over at low speed, without accelerating or turning, by vehicles with air-filled tyres, at a weight up to 5 tonnes per wheel. Max. static load, 3 tonnes (according to DIN EN 60598-2-13). Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible cable, including sealable junction box SJB. Linear PMMA LED lens. Factory installed LED circuit board. LED board can be easily removed for upgrading. Luminaire is factory sealed and does not need to be opened during installation. Integral electronic converter with DALI interface in thermally-separated compartment.

Specification

Power
6W
Color Temperature
3000K
Light Source Type
64 LEDS
Lumen Output
264LM
Finishing
BLACK ALUMINIUM
IP Rating
IP69
Color Rendering
CRI 80
Driver
DALI DRIVER

See more

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 27 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 7 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 99760 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.

LUCI
LED LIGHT BAR
INDOOR LIGHTING
Dotless and three-sided light emission from the front side and the side surfaces expands design possibilities in terms of exhibiting the light source. The smart form allows a unique line lighting to materialize for fixtures, handrails and backs of mirrors etc.

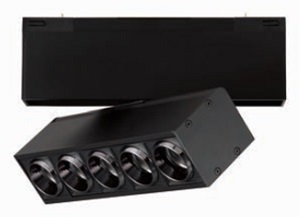

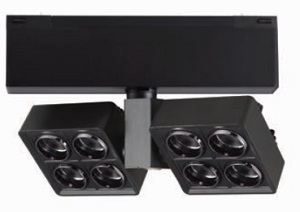

LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
